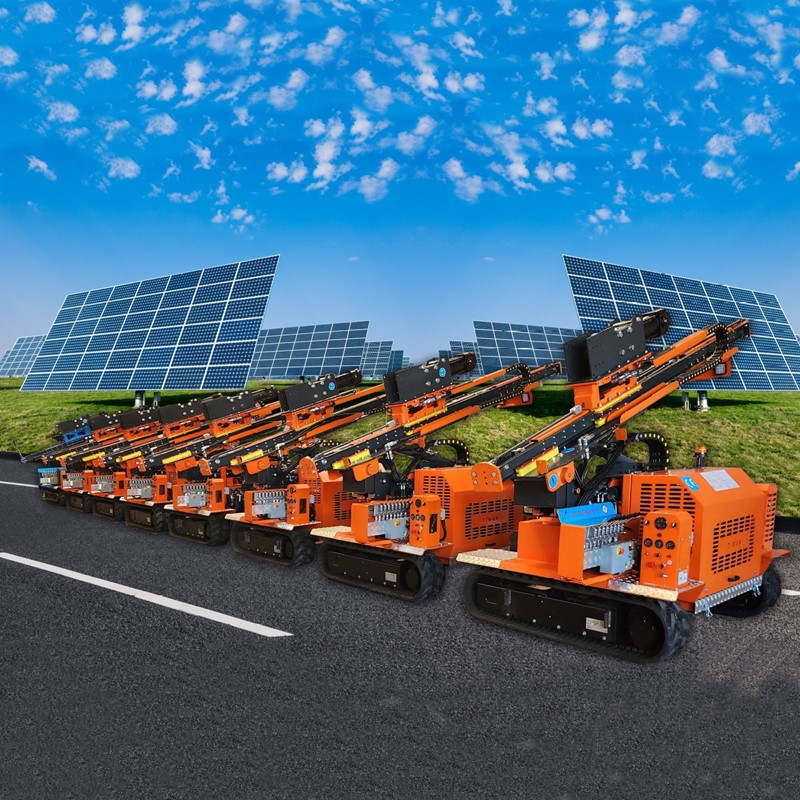

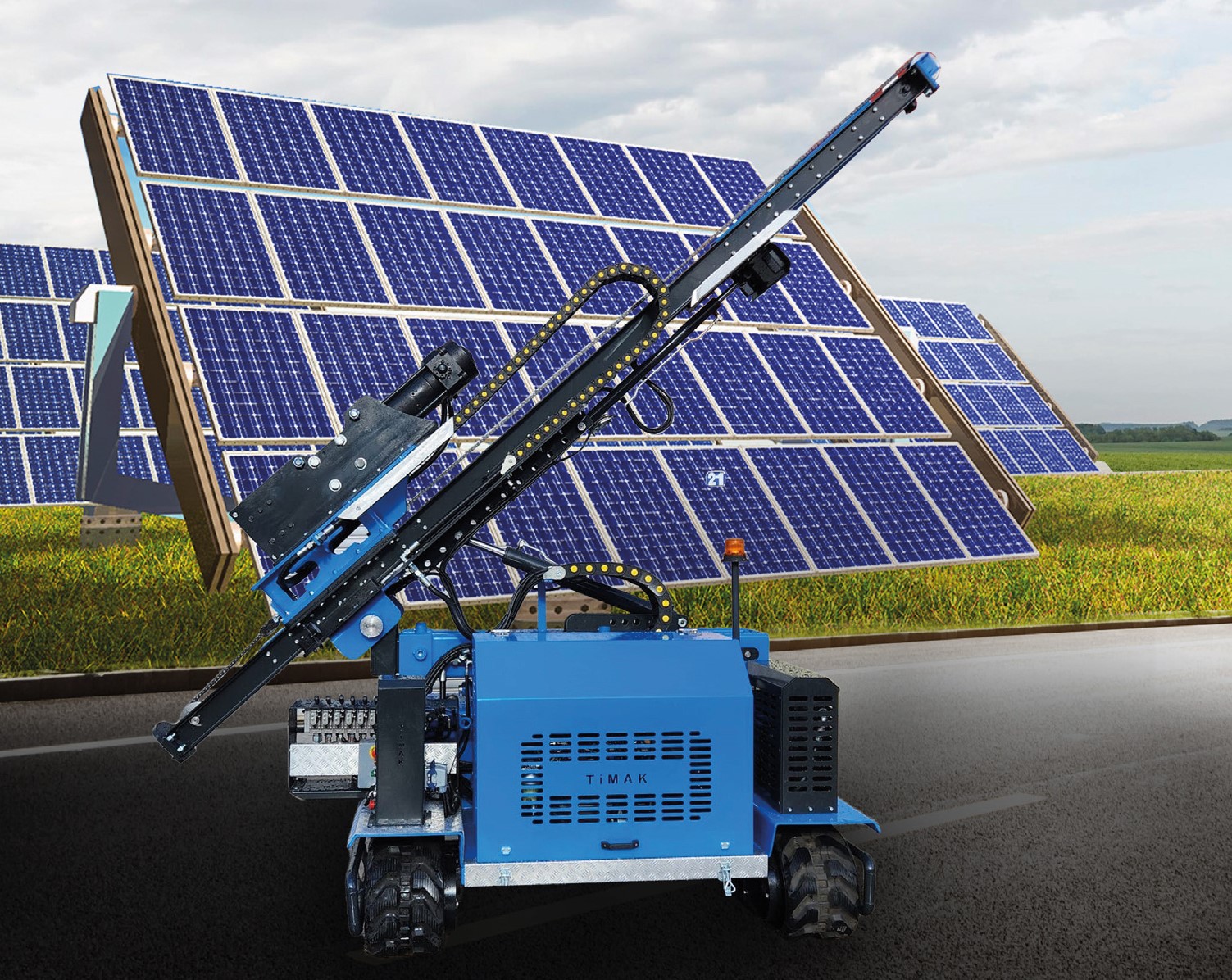

Solar Pile Driver

The increase in the demand for solar energy in recent years and the rapid growth in the sector have created the need for speed and precision in the installation of solar energy systems. Yeni Balkan Makine has developed the YBM-3000 solar pile driver to meet this need in the sector.

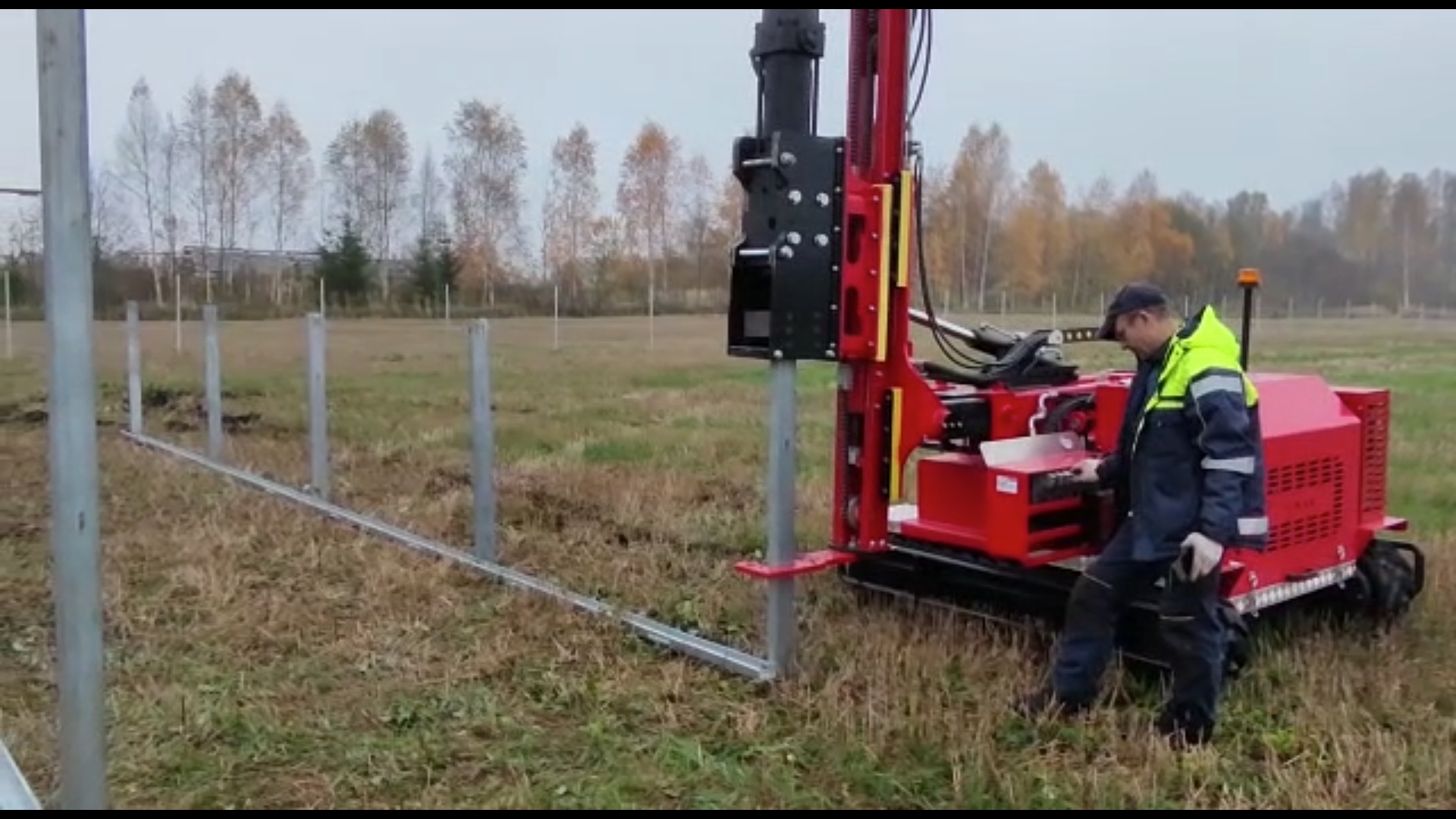

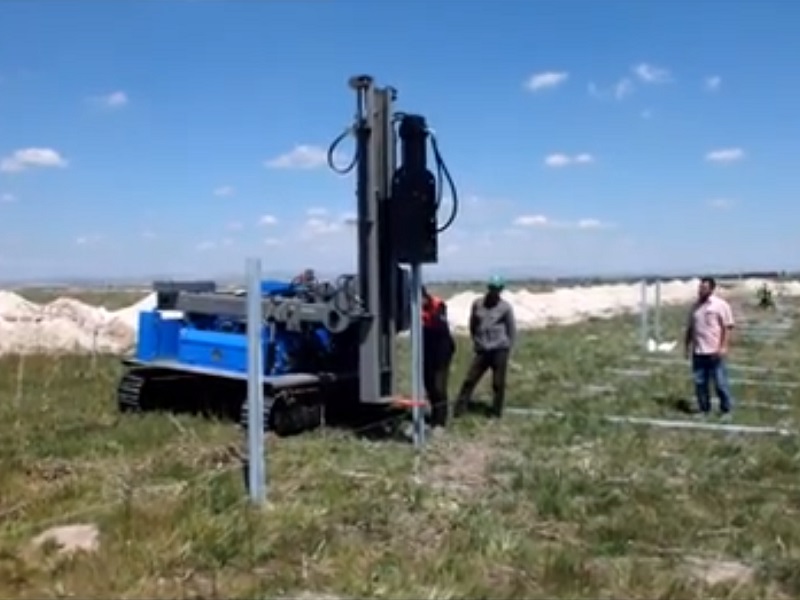

Solar pile driver is a machine used to drive poles into the ground to lay foundation for the solar panel. The vibrating hammer on the vertically movable guides is driven by hydraulic motors powered by the diesel engine on the machine. Vertical vibrations are transmitted to the pile and driving into ground is performed, while horizontal vibrations are damped to ensure stable operation of the machine.

YBM-3000 solar pile driver, in line with the demands of the industry; It is specially designed to be operated in large solar panel fields as easy to use, fast, high precision.

Technical Features
Height 3500mm - 4200mm-5100mm
Type Continuous Tracks
Engine 35 Kw Yanmar Diesel Engine
Hammer Power 1050 Joule
Hammer Rate 600 - 1140 hits/min
Carrier Weight 2.5-4 tonnes
Pallet Rubber, on request steel

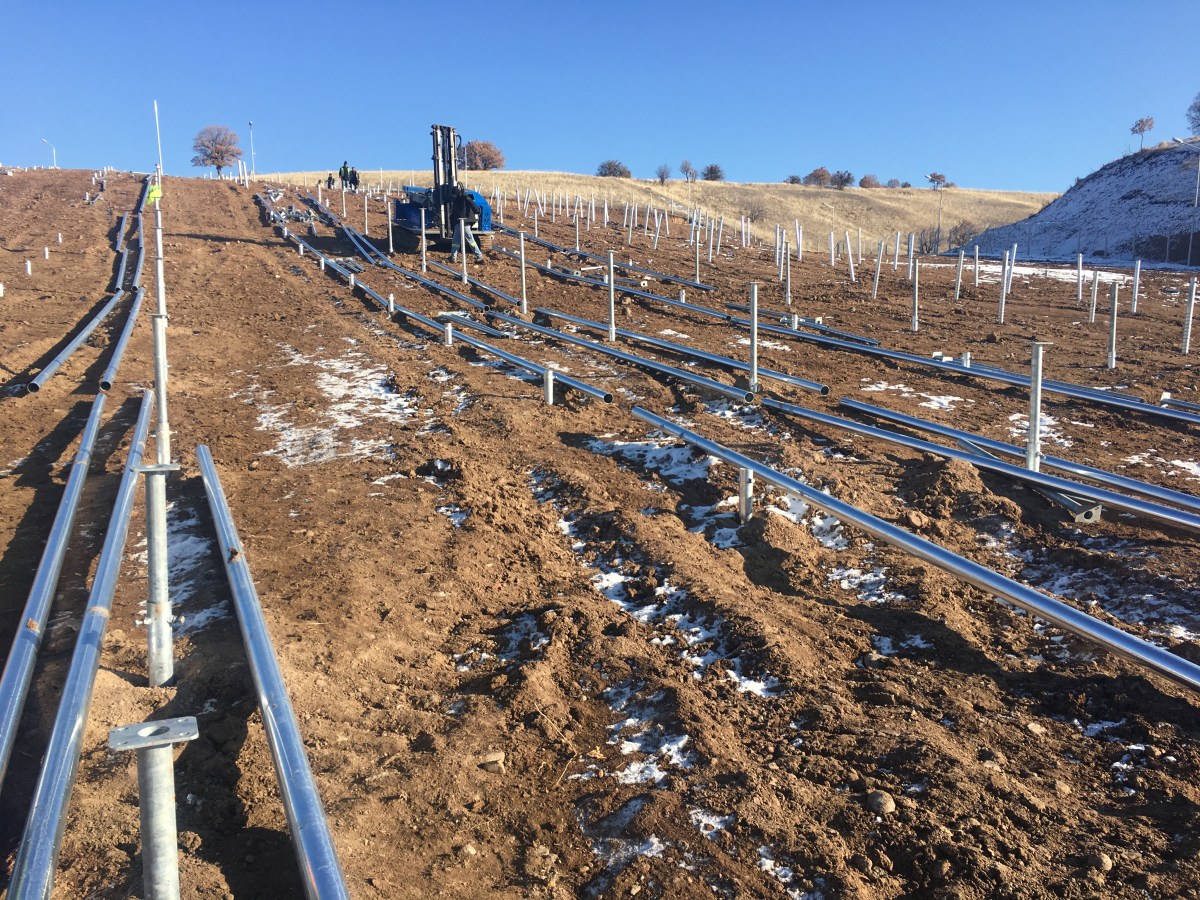

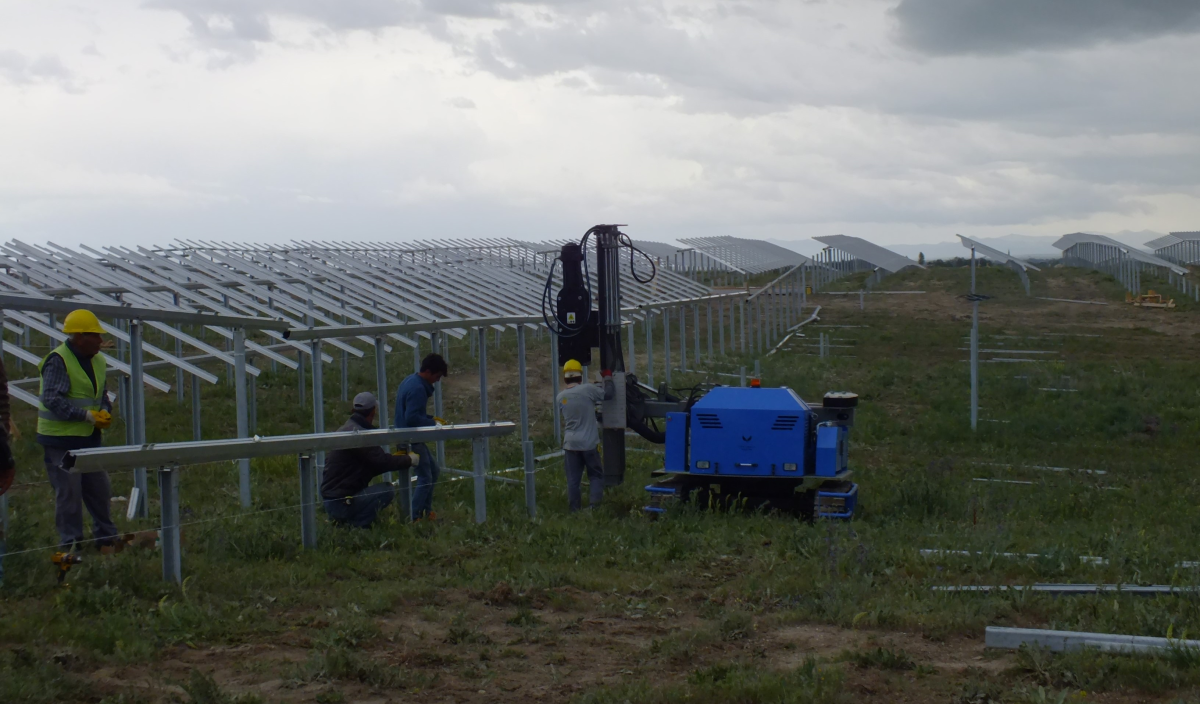

Kullanıldığı Alanlar Solar Panel Plant Instalation
